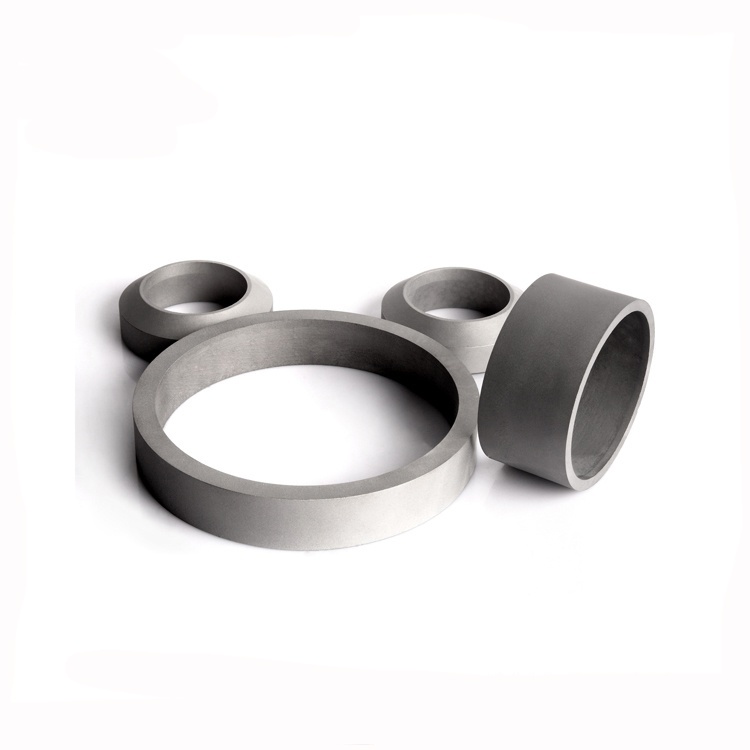

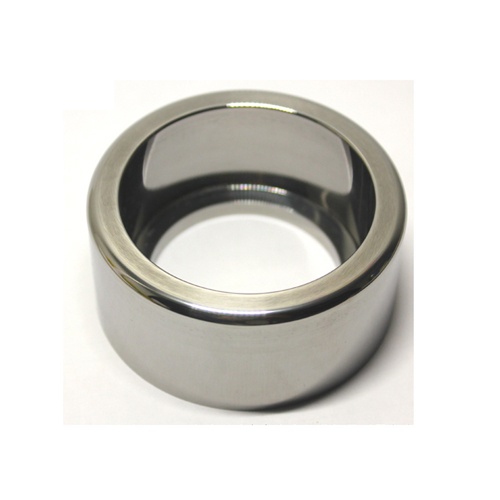

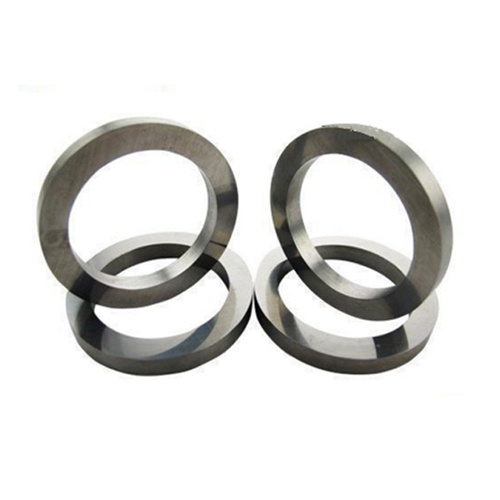

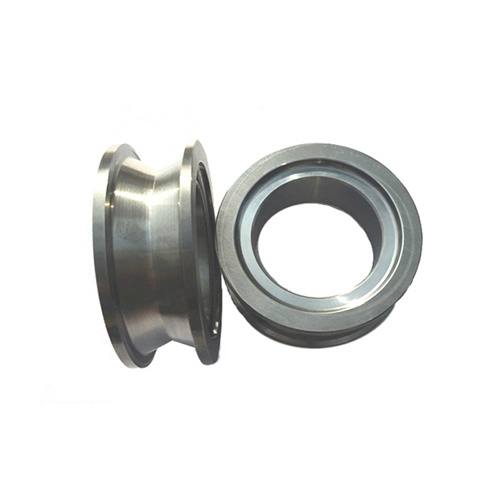

Tungsten Carbide Seal Ring

Introduction to Tungsten Carbide Seal Ring

1. Use 99.95% high-purity raw tungsten carbide powder.

2. Has high wear resistance and impact resistance.

3. Non-destructive ultrasonic flaw detection, no blisters, no pores, and high material density.

4. According to customer size or sample (drawings) production.

Tungsten Carbide Seal Ring with many sizes available for your choice.

The popular grade is K10, K20 , K30, K40

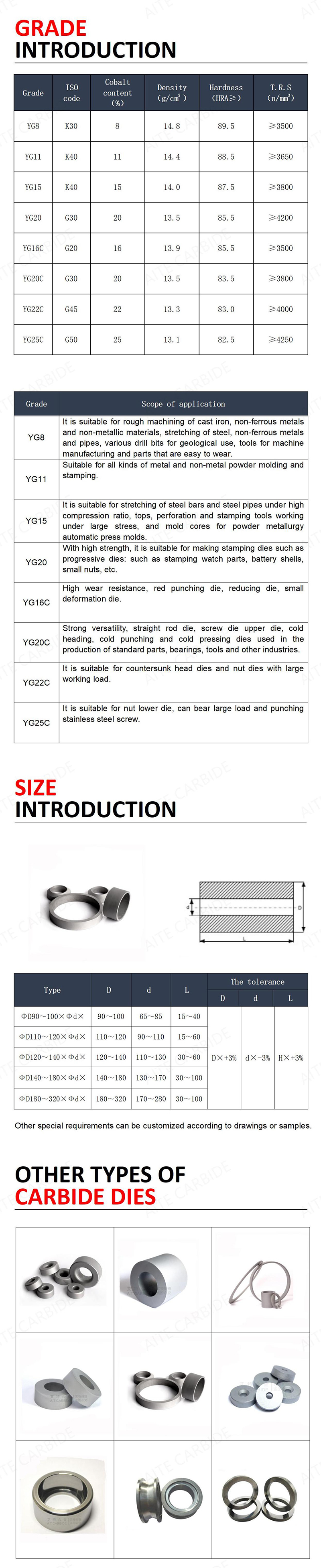

Grade Introduction

Grade	Scope of application
YG8	It is suitable for rough machining of cast iron, non-ferrous metals and non-metallic materials, stretching of steel, non-ferrous metals and pipes, various drill bits for geological use, tools for machine manufacturing and parts that are easy to wear.
YG11	Suitable for all kinds of metal and non-metal powder molding and stamping.
YG15	It is suitable for stretching of steel bars and steel pipes under high compression ratio, tops, perforation and stamping tools working under large stress, and mold cores for powder metallurgy automatic press molds.
YG20	With high strength, it is suitable for making stamping dies such as progressive dies: such as stamping watch parts, battery shells, small nuts, etc.
YG16C	High wear resistance, red punching die, reducing die, small deformation die.
YG20C	Strong versatility, straight rod die, screw die upper die, cold heading, cold punching and cold pressing dies used in the production of standard parts, bearings, tools and other industries.
YG22C	It is suitable for countersunk head dies and nut dies with large working load.
YG25C	It is suitable for nut lower die, can bear large load and punching stainless steel screw.
