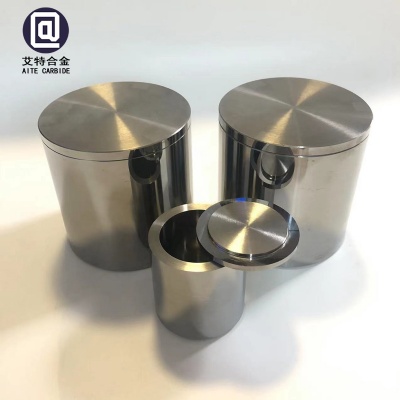

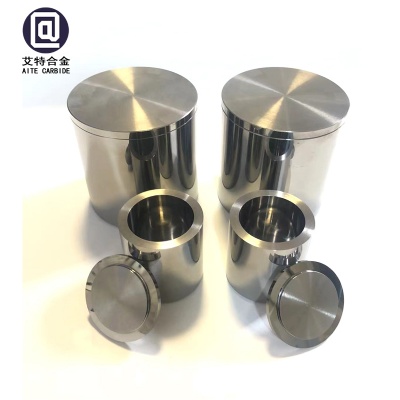

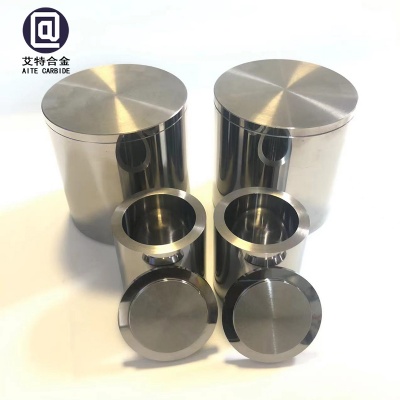

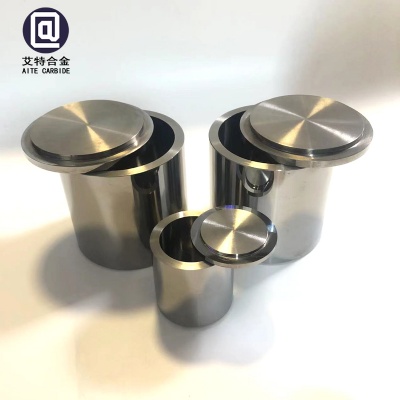

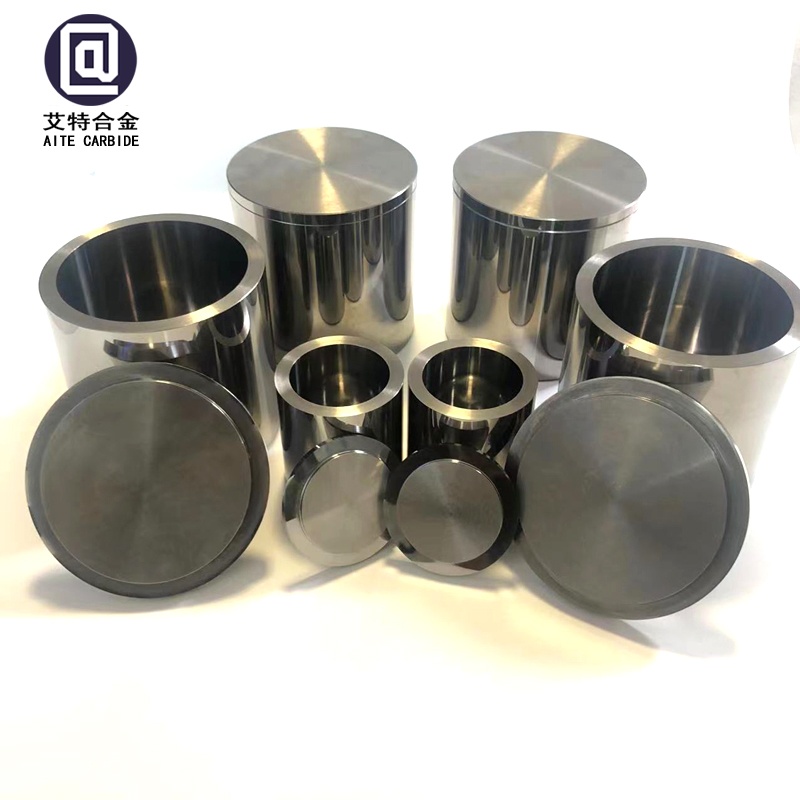

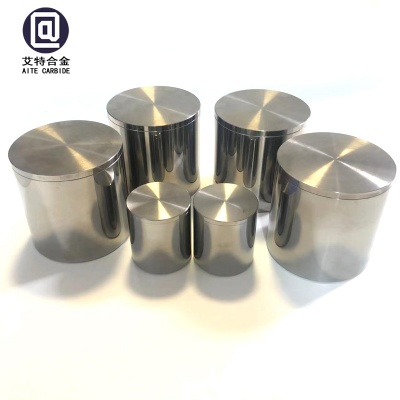

High Wear Resistance 50ml 100ml 250ml 500ml 1L Tungsten Carbide Grinding Jar For Lab Ball Mills
Cemented carbide ball mil jar is made of hard compounds of refractory metals and bonded metals. Tungsten carbide has theadvantages of high hardness, wear resistance, high strength, good toughness, heat resistance and corrosion resistance, etc.. The highhardness and wear resistance are especially outstanding,they can maintain good performance even at 500 'C temperature.
How does cemented carbide grinding jar work?
As an indispensable special accessory of the planetary ball mill, when the planetary ball mil grinds the powder, under the high-speedrunning ofthe planetary ball mil,the grinding balls, materials and the walls of the ball grinding tanks filled with grinding balls andsamples produce intense energy due to friction, impact and shear, with this energy, the samples can be pulverized very wel, and theball mill is the container to provide space for powder grinding.
Carbide ball mill grinding jar is used in planetary ball mill, withcarbide grinding ball, used for grinding carbide powder, diamond,diamond and other high hardness powder.
Features
Future of tungsten carbide grinding jar.
1. High temperature resistance, operating temperature can reach to 1000°C
2. High wear resistance at 500 °C
3. High hardness, ultra-high hardness is the main characteristics of cemented carbide grinding jars.
4. Strength and toughness, not only has the high hardness, but also has the very good toughness
How does cemented carbide grinding jar work?
As an indispensable special accessory of the planetary ball mill, when the planetary ball mil grinds the powder, under the high-speedrunning ofthe planetary ball mil,the grinding balls, materials and the walls of the ball grinding tanks filled with grinding balls andsamples produce intense energy due to friction, impact and shear, with this energy, the samples can be pulverized very wel, and theball mill is the container to provide space for powder grinding.
Carbide ball mill grinding jar is used in planetary ball mill, withcarbide grinding ball, used for grinding carbide powder, diamond,diamond and other high hardness powder.
Features
Future of tungsten carbide grinding jar.
1. High temperature resistance, operating temperature can reach to 1000°C
2. High wear resistance at 500 °C
3. High hardness, ultra-high hardness is the main characteristics of cemented carbide grinding jars.
4. Strength and toughness, not only has the high hardness, but also has the very good toughness
| Volume (mL) | H (mm) | OD (mm) | ID (mm) | Lip T (mm) | Wall T (mm) |
| 50 | 61.5 | 48 | 36 | 8 | 6 |
| 100 | 59 | 63 | 51 | 6 | 6 |
| 250 | 69 | 86 | 74 | 10 | 6 |
| 500 | 96 | 105 | 92 | 14 | 6.5 |
| 1000 | 125 | 130 | 115 | 14 | 7.5 |
