Chamfering Process Introduction

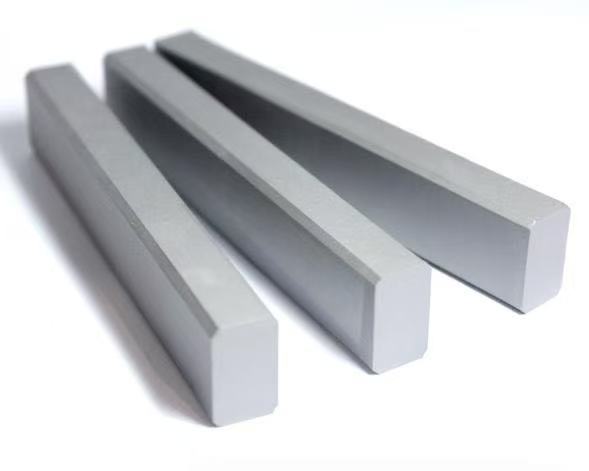

Chamfer is a common edge treatment process in mechanical machining and manufacturing, referring to the process of cutting a workpiece's sharp corners into a sloped surface. Simply put, it creates an inclined transition plane between two adjacent surfaces to replace the original 90° sharp angle.

1. Basic Definition and Characteristics

The core features of a chamfer include:

Geometric shape: Forms a planar beveled angle, most commonly 45°, but can also be set to 30°, 60°, or other custom angles as needed.
Machining method: Removes material corners through processes such as cutting, milling, or turning to form a controllable beveled surface.
Dimensional control: Typically very shallow, modifying only the edge portion without affecting the overall structural strength of the part.

2. Main Types

Based on shape and function, chamfers are divided into three main types:

C-Type Chamfer (Standard Chamfer)

The most common type, referring to a 45° chamfer.
Annotation method: "C + number," e.g., C0.5 means machining a 45° beveled surface 0.5 mm wide from the edge.
Note: The number refers to the length of the right-angle leg, not the length of the beveled edge.

R-Type Chamfer (Round Chamfer/Fillet)

Processes the corner into an arc transition.
Annotation: "R + radius value," e.g., R1 indicates a circular arc with a radius of 1 mm.
Sometimes also called "Round machining" or "R machining."

Line Chamfer (Deburring Chamfer)

A micro chamfer with extremely small dimensions (approximately C0.2–0.3), barely visible to the naked eye.
Primarily used for burr removal, with no strict specifications on shape or dimensions.
Often annotated on drawings as "Unspecified chamfer" or "Remove sharp edges and burrs."

3. Technical Drawing Annotation Methods

According to the national standard GB/T 4458.4-2003:

45° chamfer: Can be simplified as C×width or just width, e.g., C1 or 1×45°.
Non-45° chamfer: Requires both distance and angle to be specified, e.g., 2×60° indicates a chamfer depth of 2 mm and an angle of 60°.
Hole-edge chamfer: Commonly annotated in formats like C1.0×45° or 2×45°.

4. Main Functions

Chamfers serve multiple functions in engineering design:

Burr removal: Eliminates sharp edges from machining, improving safety.
Ease of assembly: Guides part mating, e.g., screw-hole chamfers facilitate screw insertion.
Stress concentration reduction: Avoids stress concentration at sharp corners, improving part lifespan.
Edge protection: Prevents wear and chipping of hole edges or part edges.
Aesthetic improvement: Enhances product appearance and feel (e.g., edges of mobile phones, laptops).
Process preparation: Prepares for subsequent processes such as welding or bonding.

5. Machining Methods

Common chamfering methods include:

CNC machining: Uses chamfer mills on milling machines or machining centers for precise processing.
Turning: Performs chamfering on rotating parts on lathes.
Manual tools: Uses chamfering knives, scrapers, or rotary deburring tools for small batches or on-site finishing.
Specialized equipment: Chamfering machines, double-headed chamfering machines, pipe chamfering machines, etc., for mass production.

6. Distinction from Related Concepts

Chamfer vs. Fillet (Round Corner)

Chamfer: Transition via straight beveled surface, with angle and distance specified.
Fillet: Transition via curved surface, with radius value R specified.
Application: Chamfers are used for assembly guidance, while fillets are better for stress dispersion.

Chamfer vs. Bevel

Chamfer: Connects adjacent surfaces (e.g., two adjacent faces of a cube), typically does not penetrate material thickness.
Bevel: Connects parallel surfaces (e.g., two side faces of a plate), may penetrate the entire thickness.
Essential difference: Chamfers are always formed by cutting/machining, whereas bevels may be in the original material forming state.

Chamfer vs. Deburring

Chamfer: A precisely designed functional feature with clear dimensional annotation.
Deburring: A process-oriented surface treatment with less strict dimensional requirements, primarily aimed at safety and cleanliness.

7. Typical Applications

Chamfers are widely used in:

Mechanical manufacturing: Edges of shafts, gears, threads, hole openings, etc.
Electronic products: Edge treatment for mobile phone and laptop casings.
Building materials: Safety treatment for edges of glass, stone, metal sheets.
Pipe processing: Chamfering of pipe end inner/outer edges facilitates welding and sealing.

In summary, the chamfer is a fundamental yet important process feature in mechanical design that can improve product functionality, safety, appearance, and manufacturability.
