Zhuzhou Aite Cemented Carbide Co., Ltd

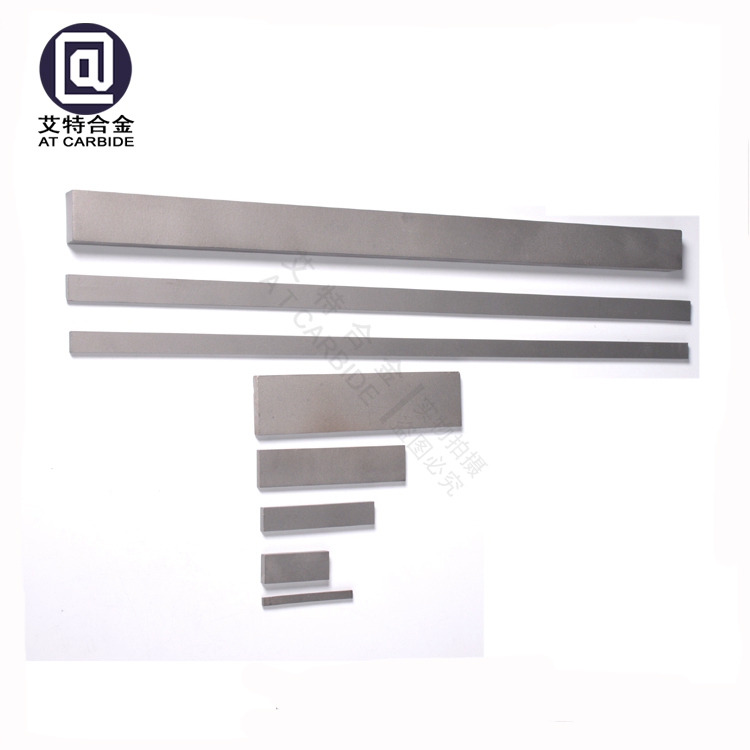

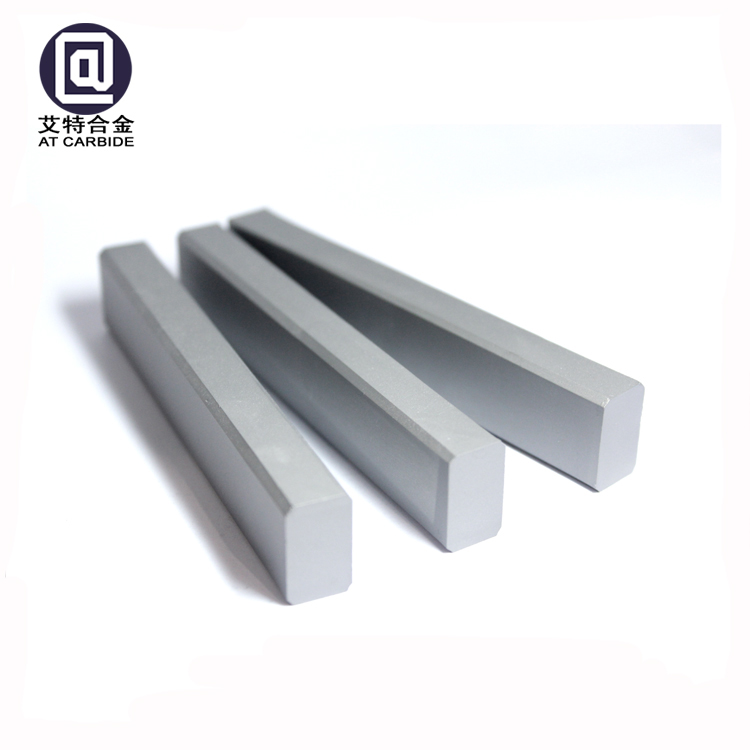

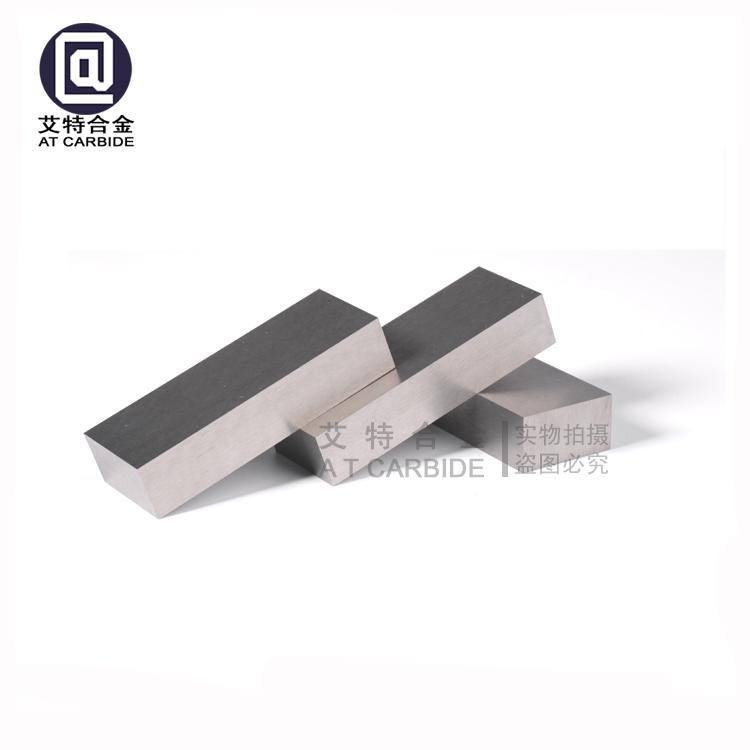

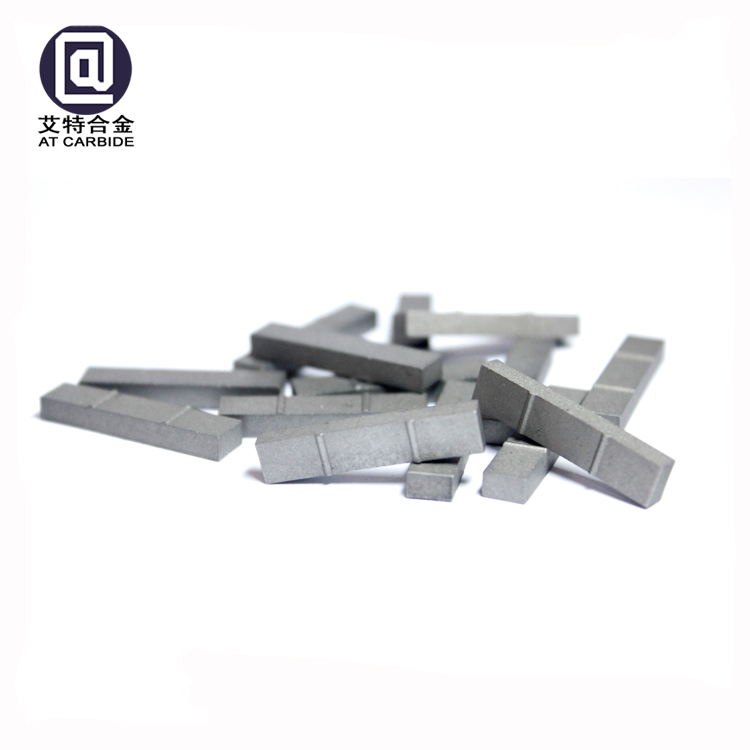

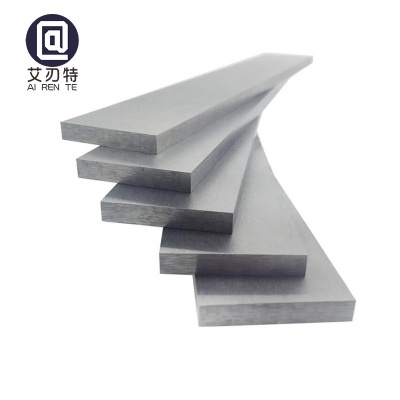

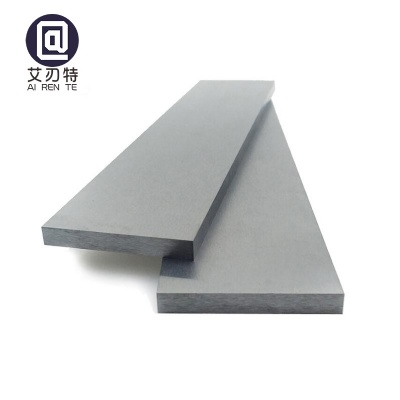

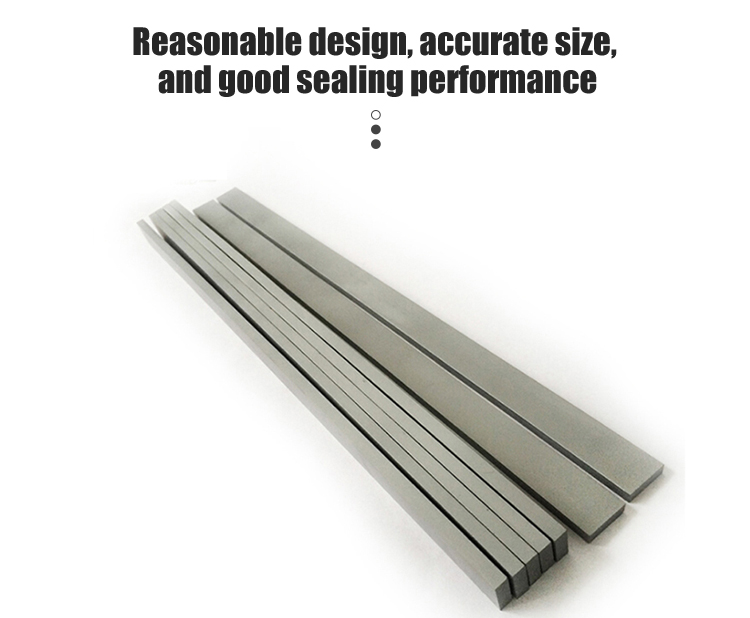

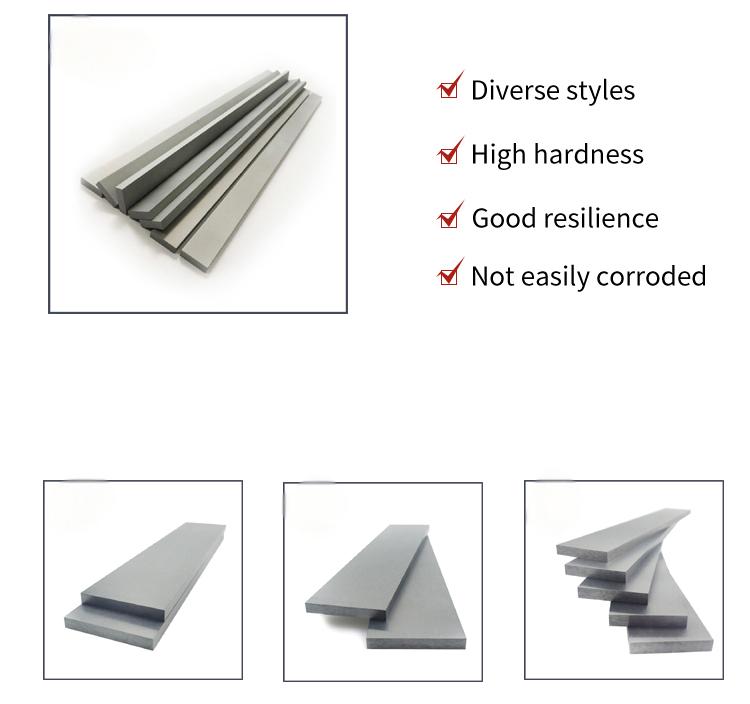

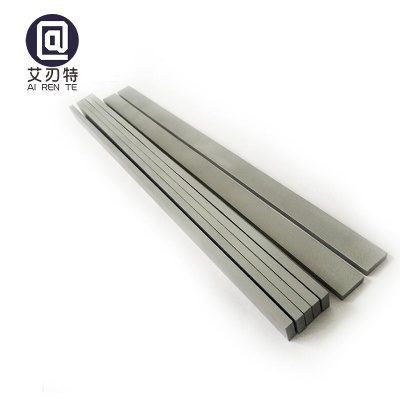

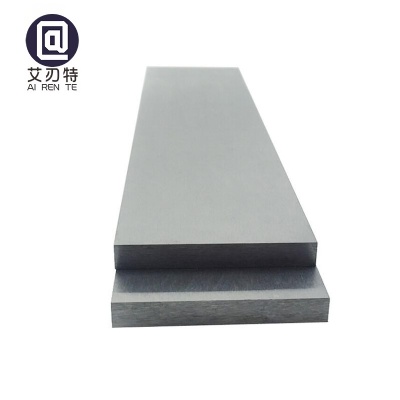

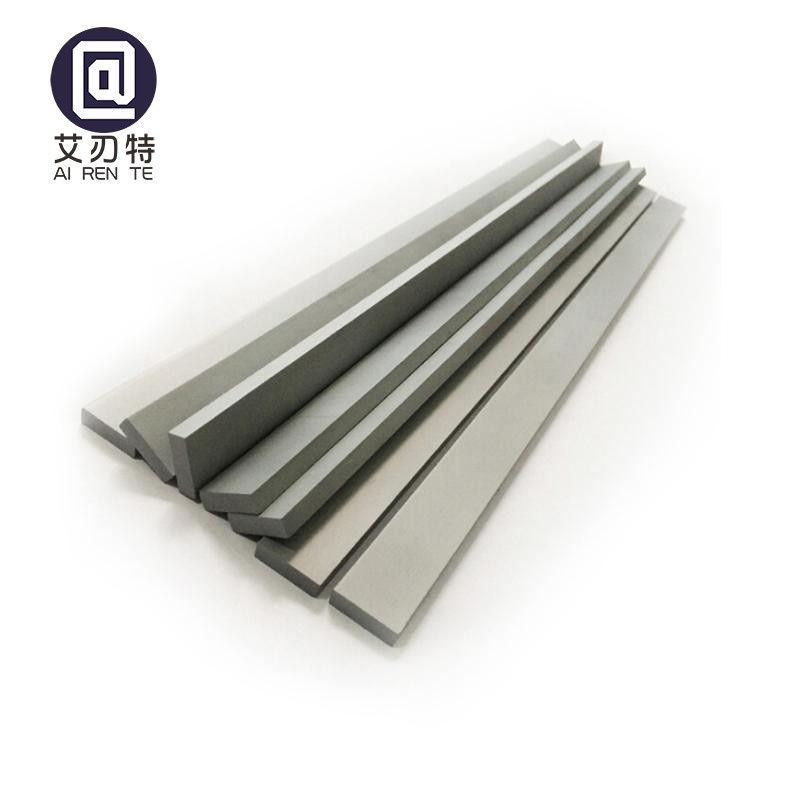

AITE Introduction to Cemented Carbide Woodworking Strip
3、 Customization services
4、 Competitive prices
5、At present, we can do 2700MM length, complete molds, can be customized according to your needs.
It can quickly and effectively process wood materials such as solid wood, MDF, particleboard, density board, with hardness up to HRA93 and long service life.
Introduction to other fields
lCut plastic rubber
lMetal and rock cutting
lPaper products, chemical fibers and textile tools
lOil wear parts

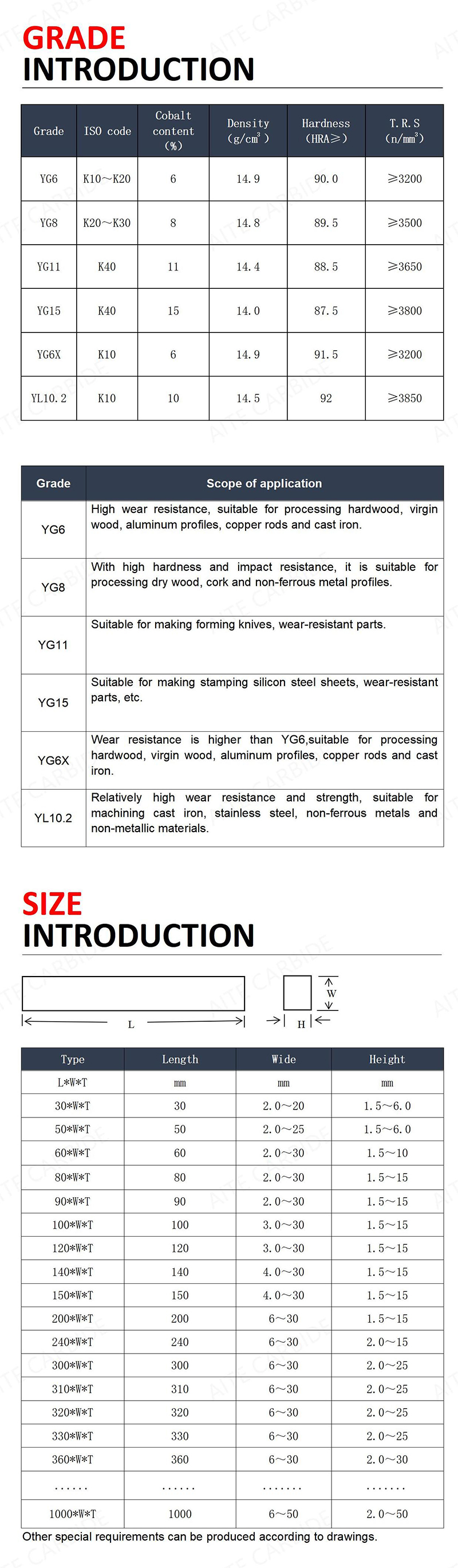

AITE carbide company manufacturers commonly used materials
|
Grade |
IS0 Code |
C0%Ni% |
Density g/cm3 |
Hardness HV30 |
Hardness HRA |
N/mm² |
μm |
| RX10 | K20 | 8 | 14.7 | 1450 | 90 | 3800 | 1.2 |
| RX10C | K20 | 10 | 14.7 | 1200 | 87 | 4200 | 3.0 |
| RX20 | K30 | 9.5 | 14.6 | 1650 | 92 | 3750 | 0.6 |
| AT12X | K30-K40 | 12 | 14.3 | 1500 | 90.5 | 3880 | 0.6 |
| AT12M | K30-K40 | 12 | 14.3 | 1550 | 87.5 | 3700 | 2.0 |
| JK1 | K30-K40 | 11 | 14.5 | 1150 | 86.5 | 4200 | 4.0 |
| JJF25 | K30-K40 | 12 | 14.2 | 1750 | 92.5 | 3600 | 0.5 |
| YS2T | K30-K40 | 9.5 | 14.25 | 1650 | 92 | 3500 | 0.6 |
| ST07 | K10 | 7 | 14.78 | 1650 | 92 | 3400 | 0.7 |
| ST06 | K10 | 6 | 14.9 | 1800 | 93 | 3200 | 0.6 |
| JJF40 | K40 | 15 | 13.98 | 1450 | 90 | 4000 | 0.6 |
| SKG7 | K40 | 15 | 13.98 | 1300 | 88.5 | 3100 |
1.2 |
| YN10X | 10 Ni | 14.5 | 1450 | 90 | 3700 | 0.6 | |
| YN15 |
|
15 Ni | 13.9 | 1100 | 86 | 2900 | 1.2 |

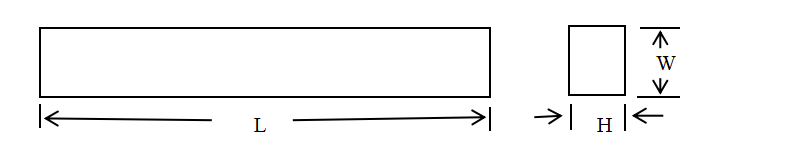

SIZE INTRODUCTION
|
L*W*T |
L(mm) |
W(mm) |
H(mm) |
|
30*W*T |
30 |
2.0～20 |
1.5～6.0 |
|
50*W*T |
50 |
2.0～25 |
1.5～6.0 |
|
60*W*T |
60 |
2.0～30 |
1.5～10 |
|
80*W*T |
80 |
2.0～30 |
1.5～15 |
|
90*W*T |
90 |
2.0～30 |
1.5～15 |
|
100*W*T |
100 |
3.0～30 |
1.5～15 |
|
120*W*T |
120 |
3.0～30 |
1.5～15 |
|
140*W*T |
140 |
4.0～30 |
1.5～15 |
|
150*W*T |
150 |
4.0～30 |
1.5～15 |
|
200*W*T |
200 |
6～30 |
1.5～15 |
|
240*W*T |
240 |
6～30 |
2.0～15 |
|
300*W*T |
300 |
6～30 |
2.0～25 |
|
310*W*T |
310 |
6～30 |
2.0～25 |
|
320*W*T |
320 |
6～30 |
2.0～25 |
|
330*W*T |
330 |
6～30 |
2.0～25 |
|
360*W*T |
360 |
6～30 |
2.0～30 |
|
450*W*T |
450 |
6～30 |
2.0～30 |
|
1300*W*T |
1300 |
6～30 |
2.0～30 |
|
...... |
...... |
....... |
....... |
|
2700*W*T |
2700 |
6～50 |
2.0～50 |
Other special requirements can be produced according to drawings.
For more information (size, grade, MOQ, price, delivery, etc.) please request a quote or email: [email protected]. Our sales team and engineers are ready to respond with their expertise.
